Coordinates

We use coordinates to describe the positions of points on a grid in terms of their positions along the x-axis (horizontal) and y-axis (vertical).

There are 4 skills that you need to learn.

Make sure you are happy with the following topics before continuing.

FS Level 2AQAEdexcelCity & GuildsNCFEOpen AwardsHighfield Qualifications

Skill 1: Understanding Coordinate Grids

Points can be plotted and lines can be drawn on a grids similar to that seen.

A grid is made by 2 lines crossing called axes, meeting at a point in the middle called the origin.

The x-axis is the horizontal axis (left to right) and the y-axis is the vertical axis (bottom to top).

Coordinates are described by a pair of coordinates (\textcolor{red}{x}, \, \textcolor{blue}{y}) and represented by a dot or cross. The x coordinate is always written first.

The origin has coordinates (0, 0).

FS Level 2AQAEdexcelCity & GuildsNCFEOpen AwardsHighfield Qualifications

Skill 2: Reading off Coordinates

You may be asked to find the coordinates of a point on a grid.



Example: What are the coordinates of the point A on the grid?

For the x coordinate, go up from A to the x-axis. Read off the number:

\textcolor{red}{2}

For the y coordinate, go across from A to the y-axis. Read off the number:

\textcolor{blue}{-3}

So, the coordinates of A are:

(\textcolor{red}{2} , \, \textcolor{blue}{-3} )

FS Level 2AQAEdexcelCity & GuildsNCFEOpen AwardsHighfield Qualifications

Follow Our Socials

Social BG
Facebook

Follow our Facebook for community support

Social BG

Follow our Instagram & TikTok for revision help

Our Facebook page can put you in touch with other students of your course for revision and community support. Alternatively, you can find us on Instagram or TikTok where we're always sharing revision tips for all our courses.

Follow our socials for revision tips and community support

  • facebook
  • instagram
  • tiktok

Skill 3: Plotting Points

You may also be asked to plot points on a grid, if you are given their coordinates.



Example: Plot the point (1, \, 3) on the grid.

Move right from the origin to find \textcolor{red}{1} on the x-axis.

Move up from 1 until you are level with \textcolor{blue}{3} on the y-axis.

Mark this position with a dot or a cross, and label it (\textcolor{red}{1}, \, \textcolor{blue}{3}).

FS Level 2AQAEdexcelCity & GuildsNCFEOpen AwardsHighfield Qualifications

Skill 4: Plotting Lines and 2D Shapes

You can connect points on a grid to make lines or 2D shapes.

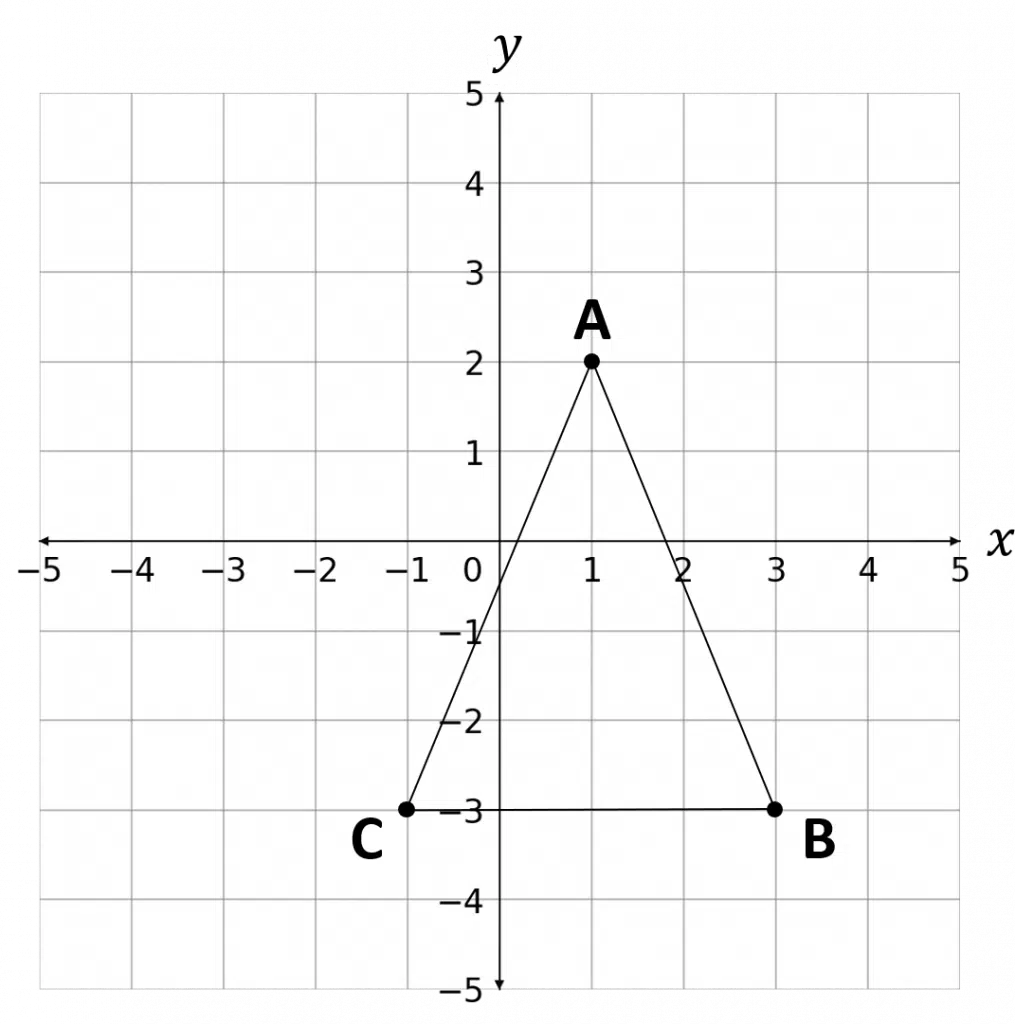

e.g. the grid shows a triangle drawn by plotting 3 points and connecting them with straight lines.

We call the triangle ABC after the letters of its corners.



Note: You may be given dimensions in a question and have to use these to plot points and create 2D shapes.

FS Level 2AQAEdexcelCity & GuildsNCFEOpen AwardsHighfield Qualifications
FS Level 2AQAEdexcelCity & GuildsNCFEOpen AwardsHighfield Qualifications

Example: Plotting Lines and 2D Shapes

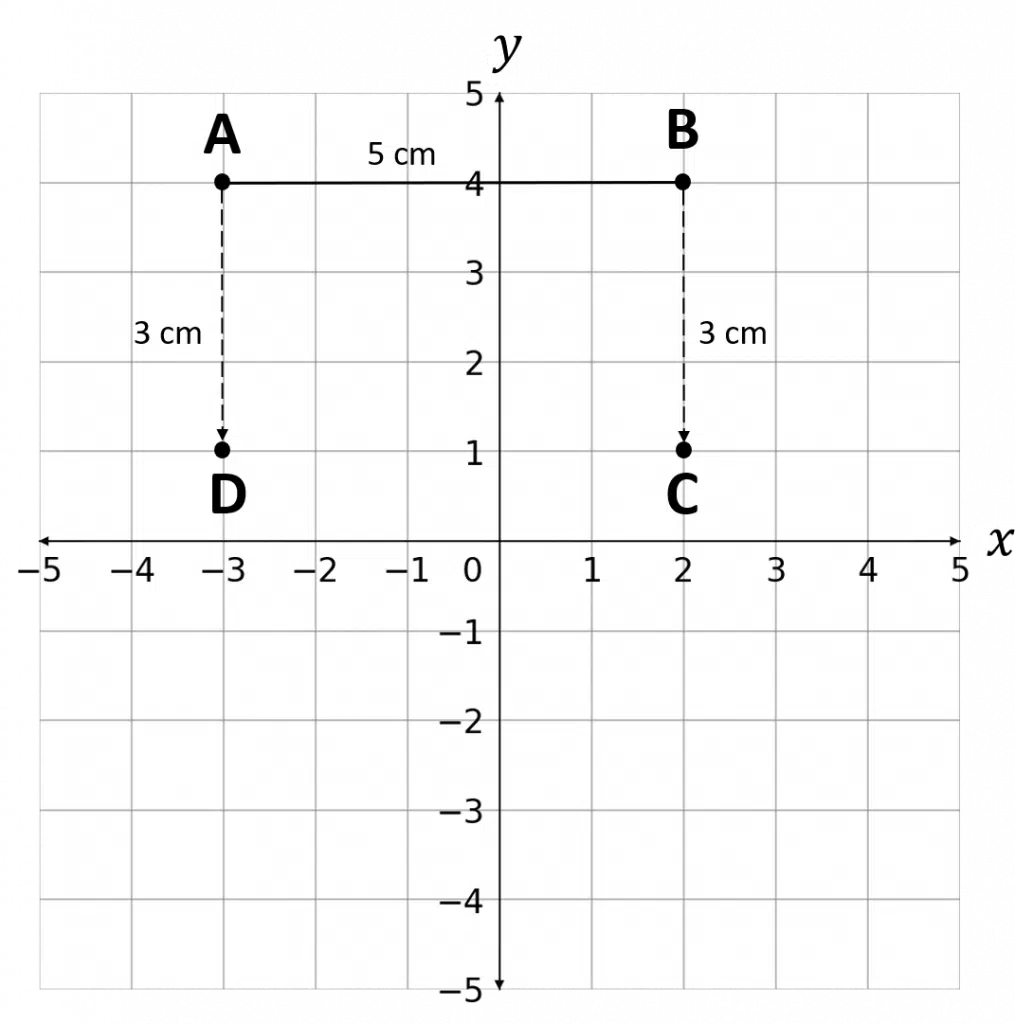

Using the grid, find the coordinates of C and D such that rectangle ABCD has an area of 15 cm^2.

Key: 1 \text{ square} = 1 \text{ cm}^2

[2 marks]

The distance between A and B is 5 cm.

If the area of the rectangle is 15 cm^2, then the shorter sides must be 15 \div 5 = 3 cm.

Since ABCD is a rectangle, points C and D must be directly below A and B. So, their y-coordinates will be 3 less than A and B.

Therefore, coordinates of point C will be (2,1) and the coordinates of point D will be (-3, 1).

FS Level 2AQAEdexcelCity & GuildsNCFEOpen AwardsHighfield Qualifications

Functional Skills: Coordinates Example Questions

Question 1: What are the coordinates of the points A and B on the grid below?





[2 marks]

FS Level 2 AQAEdexcelCity & GuildsNCFEOpen AwardsHighfield Qualifications

A is 3 left and 3 down, so A’s coordinates are (-3,-3)

B is 4 right and 1 up, so B’s coordinates are (4,1)

Question 2: Plot the point (-1,2) on the grid below.





[1 mark]

FS Level 2 AQAEdexcelCity & GuildsNCFEOpen AwardsHighfield Qualifications

Move left from the origin to find -1 on the x-axis.

Then, move up from -1 until you are level with 2 on the y-axis.

Mark this position on the grid and label the point (-1,2).

Question 3: Points A and B have been plotted on the grid below.

Given that ABCD is a square, what are the coordinates of C and D?







Key: 1 \text{ square} = 1 \text{ cm}^2

[2 marks]

FS Level 2 AQAEdexcelCity & GuildsNCFEOpen AwardsHighfield Qualifications

The distance between A and B is 4 cm.

ABCD is a square, so all sides must be 4 cm.

Also, C and D must be directly to the right of A and B. So, their x-coordinates will be 4 more than A and B.

Therefore, coordinates of point C will be (2,-1) and the coordinates of point D will be (2,3).
