Functional Skills: Plans and Elevations Revision

Plans and Elevations

Projections are the different ways you can represent a 3D shape in 2D (e.g. in a diagram).

A front elevation is a view from the front and a side elevation is a view from the side. A plan is a bird’s eye view from above.

Make sure you are happy with the following topics before continuing.

FS Level 1FS Level 2AQAEdexcelCity & GuildsNCFEOpen AwardsHighfield Qualifications

Could you pass your functional skills maths level 2?

Wondering if you are ready to pass your functional skills maths level 2? Why not take a subject knowledge assessment test and see if you are ready to pass. Anything around 60% would be a pass.

CTA Icon

Drawing Plans and Elevations of 3D Shapes

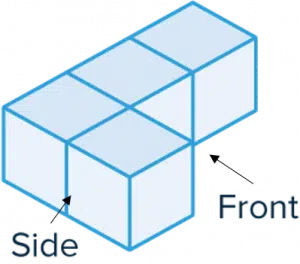

Example: Draw a plan, a front elevation, and a side elevation of the following 3D shape.



Viewed from the side, this shape would have a width of 2 squares and a height of 1. So, the side elevation looks like this:

If we stood at the front of the shape, we’d see a width of 3 squares and a height of 1. So, the front elevation would look like this:

Finally, from above (plan view), we’d see an L-shape like this:

FS Level 1FS Level 2AQAEdexcelCity & GuildsNCFEOpen AwardsHighfield Qualifications

Struggling with Plans and Elevations?

Take our functional skills maths level 2 assessment and see how you would score in the real exam.

CTA Icon

Drawing Plans and Elevations of More Complex 3D Shapes

For complex shapes, you may be given dimensions that you will need to use to draw the plans and elevations.

Example: A builder is planning on building the following 3D structure.

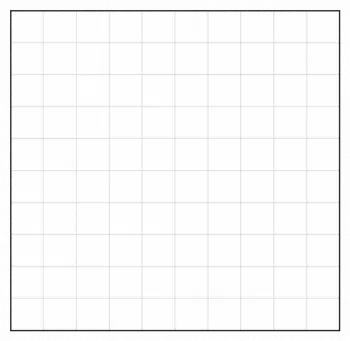

Draw the front elevation of the structure on the grid below.

1 square = 1 ft in real life

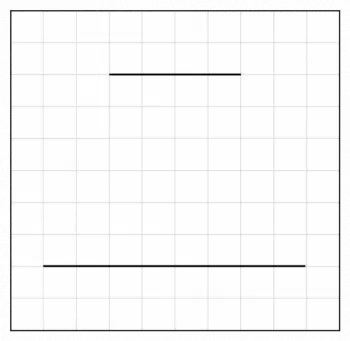

Start by drawing the dimensions you know:

  • The width of the bottom of the front elevation is 8 ft, so this is 8 squares wide on the grid.
  • The width of the top of the front elevation is 4 ft, so this is 4 squares wide on the grid.
  • The middle of these two lines need to be inline vertically, and need to be 6 squares apart.

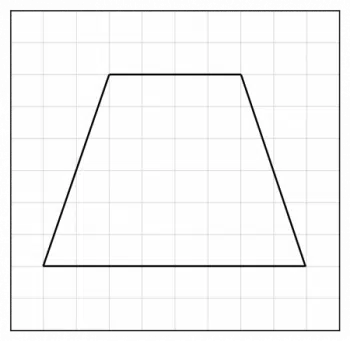

Finally, join up the two lines to make the front elevation:

FS Level 1FS Level 2AQAEdexcelCity & GuildsNCFEOpen AwardsHighfield Qualifications

Follow Our Socials

Social BG
Facebook

Follow our Facebook for community support

Social BG

Follow our Instagram & TikTok for revision help

Our Facebook page can put you in touch with other students of your course for revision and community support. Alternatively, you can find us on Instagram or TikTok where we're always sharing revision tips for all our courses.

Follow our socials for revision tips and community support

  • facebook
  • instagram
  • tiktok

Functional Skills: Plans and Elevations Example Questions

The front elevation and side elevation are the same. They are both 3 squares wide and 1 square high.

The plan (the view from above) will be a cross shape, consisting of 5 squares.

All three projections can be seen below:



The plan (view from above) will look like 3 squares (units) in a row:



The side elevation will be 2 units high and 1 unit wide:

The plan, front elevation and side elevations are as follows:
