Functional Skills: Volume
Functional Skills: Volume Revision
Volume of 3D Shapes
The volume of an object is how much space it takes up. Volume involves lengths being multiplied 3 times – so the units for length need to be multiplied together 3 times too. Therefore, we get units like metres cubed (m^3), centimetres cubed (cm^3) and millimetres cubed (mm^3) for volume.
Make sure you are happy with the following topics before continuing.
Volume of Cubes and Cuboids
The volume of a cuboid is given by:
\text{Volume of cuboid} = \textcolor{blue}{\text{length} \times \text{width} \times \text{height} = l \times w \times h}
For a cube, all sides are the same length, so the volume of a cube is given by:
\text{Volume of cube} = \textcolor{blue}{\text{length} \times \text{length} \times \text{length} = l \times l \times l = l^3}
Follow Our Socials
Follow our Facebook for community support
Follow our Instagram & TikTok for revision help
Our Facebook page can put you in touch with other students of your course for revision and community support. Alternatively, you can find us on Instagram or TikTok where we're always sharing revision tips for all our courses.
Follow our socials for revision tips and community support
Volume of Prisms and Cylinders
The volume of a prism is given by:
\text{Volume of prism} = \textcolor{red}{\text{cross-sectional area}} \times \textcolor{limegreen}{\text{length}}
This is the case for any prism, including cubes and cuboids. The cross-sectional area on a prism is the area of the front or back face. For a triangular prism, the cross-sectional area is a triangle and for a cylinder (which is like a prism) it is a circle.
So, the volume of a cylinder is given by
\text{Volume of cylinder} = \textcolor{red}{\pi r^2} \times \textcolor{limegreen}{\text{length}}
Example 1: Volume of a Cuboid

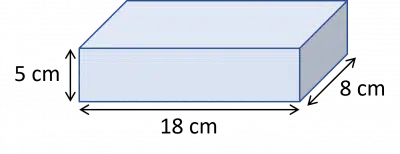

Below is a rectangle. The rectangle has a length of 18 cm, a width of 8 cm and a height of 5 cm.
Calculate the volume of the cuboid.
[2 marks]
We need to multiply the length by the width by the height.
\text{Volume} = \text{length} \times \text{width} \times \text{height} = 18 \times 8 \times 5 = 720 cm^3
Example 2: Volume of a Prism
Below is a triangular prism. The triangular face has base of 6\text{ cm} and height of 5\text{ cm}. The length of the prism is 3.5\text{ cm}.
Calculate the volume of this prism.
[3 marks]
The first step in this question is to work out the area of the cross-section, so the triangle.
We can do this as follows,
\dfrac{1}{2}(6\times5)=15\text{ cm}^2
The next step is to multiply the cross-sectional area by the length of the prism,
 \text{Volume} = 15\times3.5=52.5\text{ cm}^3
Functional Skills: Volume Example Questions
Question 1:Â The diagram below shows the outline of a cuboid, ABCDEFGH, with dimensions: AB=3 cm, BC=12 cm, and CF=16 cm.
Calculate the volume of the cuboid.
[2 marks]
Multiply the length by the height by the width:
Volume = 3\times12 \times16=576 cm^3
Question 2: Calculate the volume of a cube of sides of length 5 cm.
[2 marks]
The volume of a cube is calculated by cubing the length of one of its sides:
Volume = 5 \times 5 \times 5 = 125 cm^3
Question 3: A cylinder has a diameter of 8 cm and a length of 5 cm.
Find the volume of the cylinder, giving your answer to the nearest whole number.
Use \pi = 3.14
[3 marks]
Radius = 8 \div 2 = 4 cm
Area of circle = \pi r^2 = 3.14 \times 4^2 = 50.24 cm^2
Volume = 50.24 \times 5 = 251.2 = 251 cm^3 (nearest whole number)
