2D Shapes
This page contains the properties of different 2D shapes, apart from circles, which are on the circles page.
Symmetry
A line of symmetry splits a shape in half, where both halves are mirror images of each other. To test whether a shape has a line of symmetry, you could fold the shape along this line and if it was a line of symmetry, both sides would fold exactly over each other.
Some shapes, like a rectangle or a square, have more than one line symmetry.
Triangles
Triangles have 3 sides, and vary in name depending on the properties of the sides and angles.

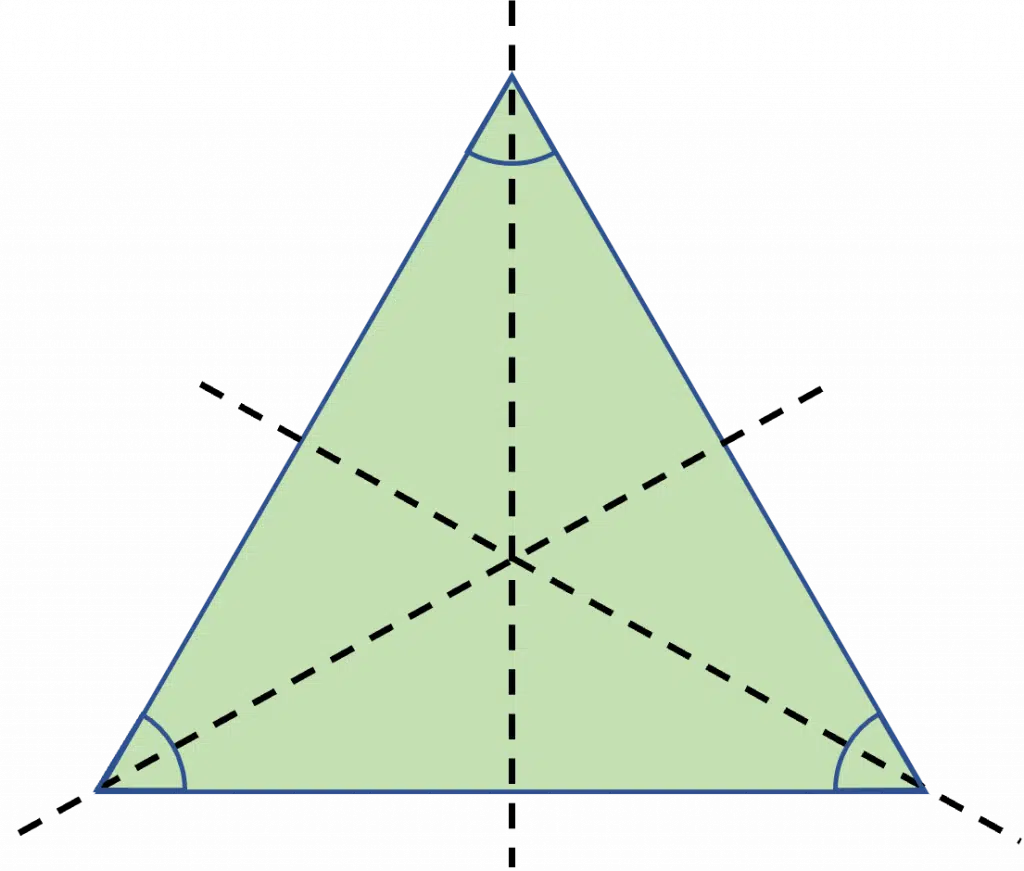

Equilateral triangle:
- All sides are the same length
- All angles are the same size (60\degree)
- It has 3 lines of symmetry

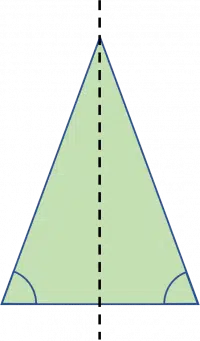

Isosceles triangle:
- Two sides are the same length
- Two angles are the same size
- 1 line of symmetry

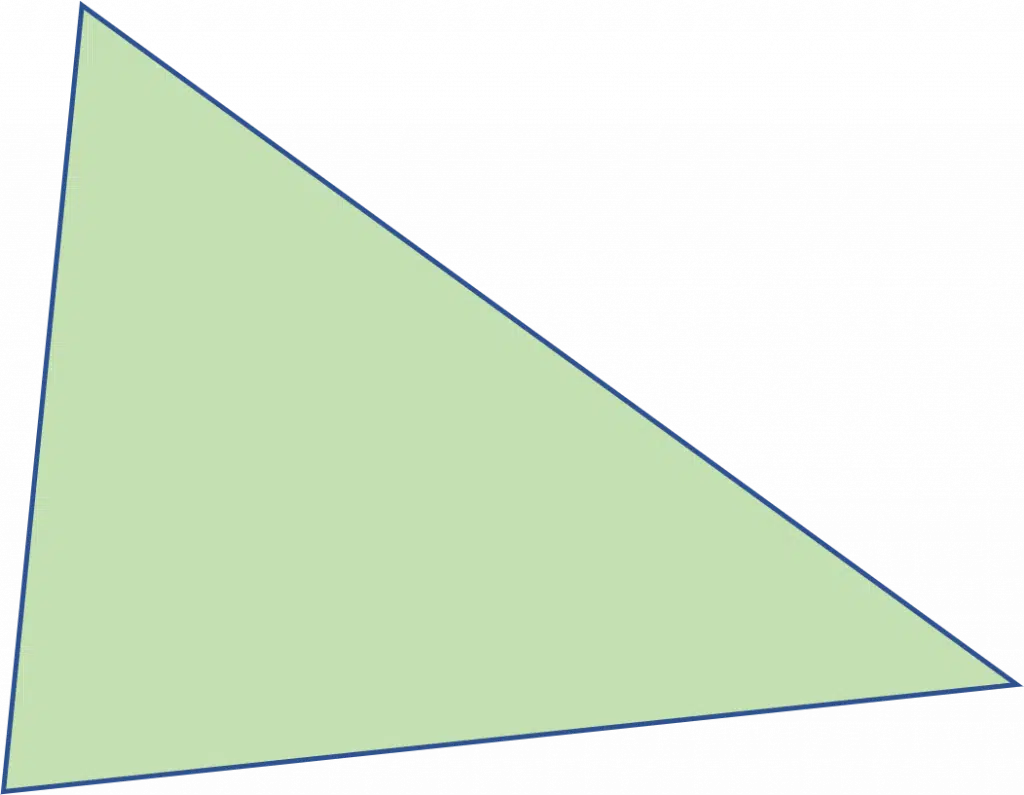

Scalene triangle:
- All sides are different lengths
- All angles are different sizes
- No lines of symmetry

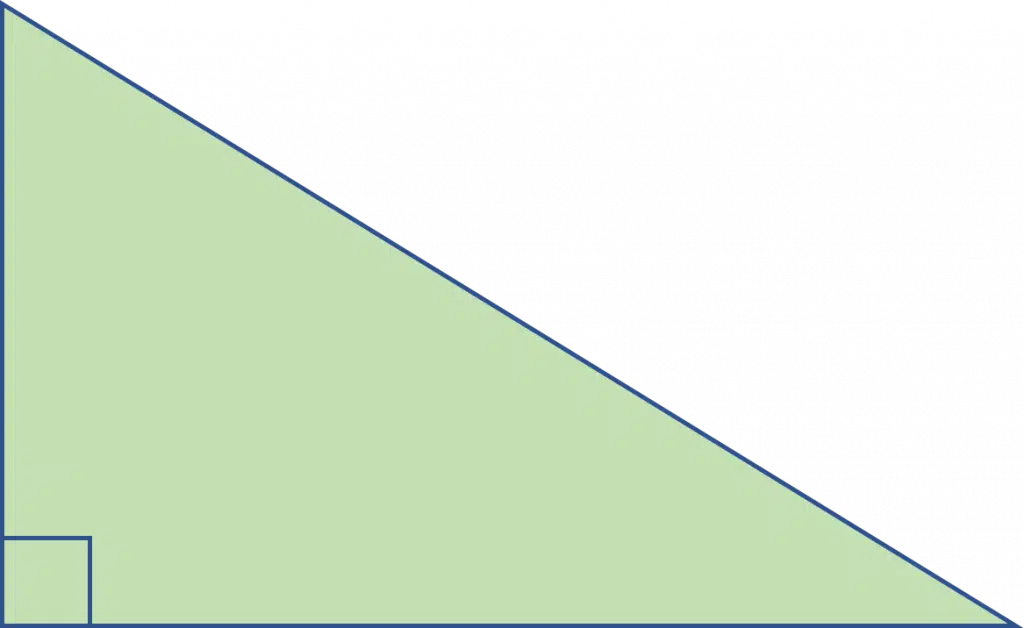

Right-angled triangle:
- Scalene or isosceles
- Has one angle which is 90\degree
Follow Our Socials
Follow our Facebook for community support
Follow our Instagram & TikTok for revision help
Our Facebook page can put you in touch with other students of your course for revision and community support. Alternatively, you can find us on Instagram or TikTok where we're always sharing revision tips for all our courses.
Follow our socials for revision tips and community support
Quadrilaterals
4-sided shapes are called quadrilaterals. These have lots of different properties.

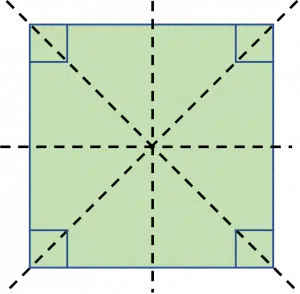

Square:
- All 4 sides are the same length
- All angles are the same size (90\degree)
- Has 4 lines of symmetry

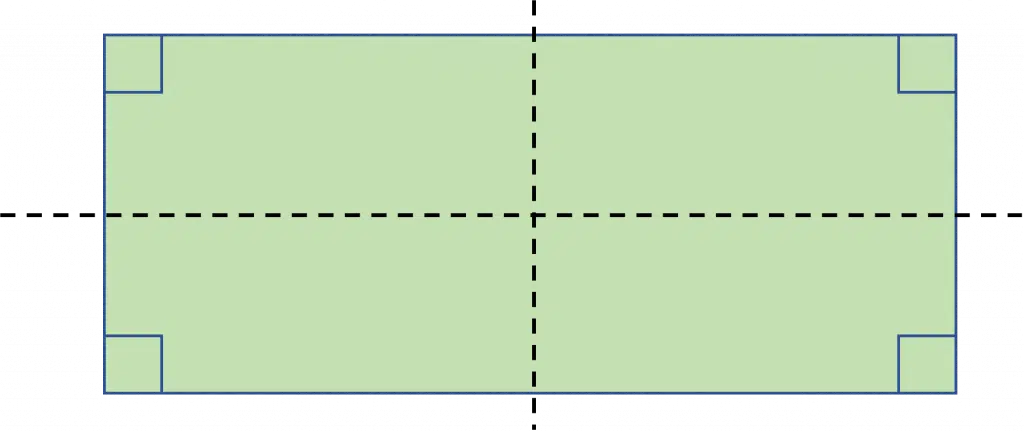

Rectangle:
- 2 pairs of equal sides
- All angles are the same size (90\degree)
- Has 2 lines of symmetry

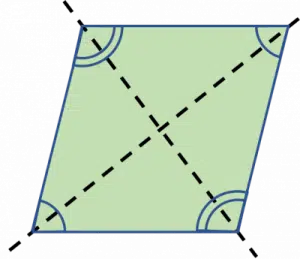

Rhombus:
- All sides are the same length
- Opposite sides are parallel
- Opposite angles are equal
- Has 2 lines of symmetry

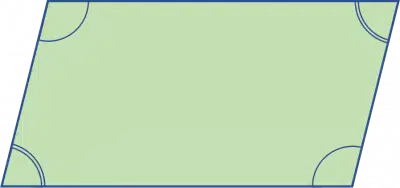

Parallelogram:
- 2 pairs of equal parallel sides
- Opposite angles are equal
- No lines of symmetry

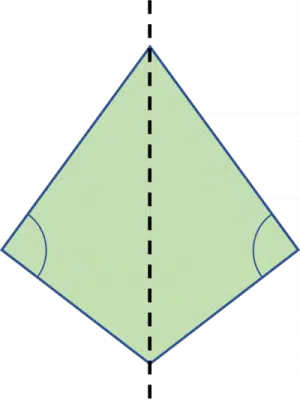

Kite:
- 2 pairs of equal sides
- 1 pair of equal angles
- 1 line of symmetry

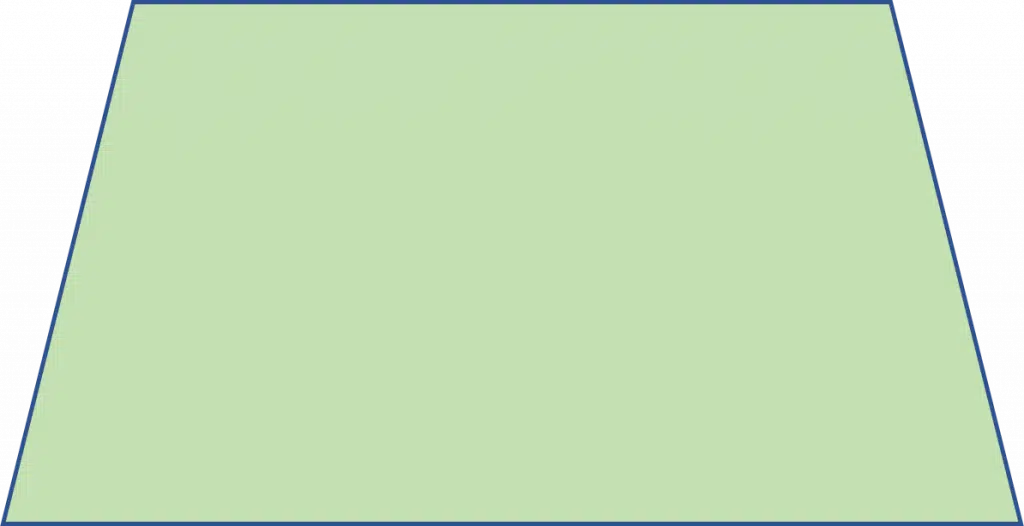

Trapezium:
- 1 pair of parallel sides
Functional Skills: 2D Shapes Example Questions
Question 1: How many lines of symmetry does the shape below have?
[1 mark]
This shape has 4 lines of symmetry.
Question 2: What is the angle labelled x?
[1 mark]
A kite has one pair of equal angles, so x=92\degree
Question 3: Abbie has drawn lines of symmetry on the shape below, is his diagram correct? Give a reason for your answer.
[1 mark]
Abbie’s diagram isn’t correct, the two diagonal lines of symmetry aren’t correct.
