Functional Skills: Symmetry and 2D Shapes

Entry Level 3City & GuildsEdexcelNCFEOpen Awards

Functional Skills: Symmetry and 2D Shapes Revision

Symmetry and 2D Shapes

We’ll now look at some 2D Shapes, and in particular, we’ll look to compare their lines of symmetry.

Entry Level 3EdexcelCity & GuildsNCFEOpen Awards

Lines of Symmetry

A line of symmetry for a shape is easy to find. Imagine your shape is made of paper. Now, fold it in half. If there’s any way you can fold the shape in half to have a perfect overlap (i.e. no extra pieces on either side), you have found a line of symmetry along the fold.

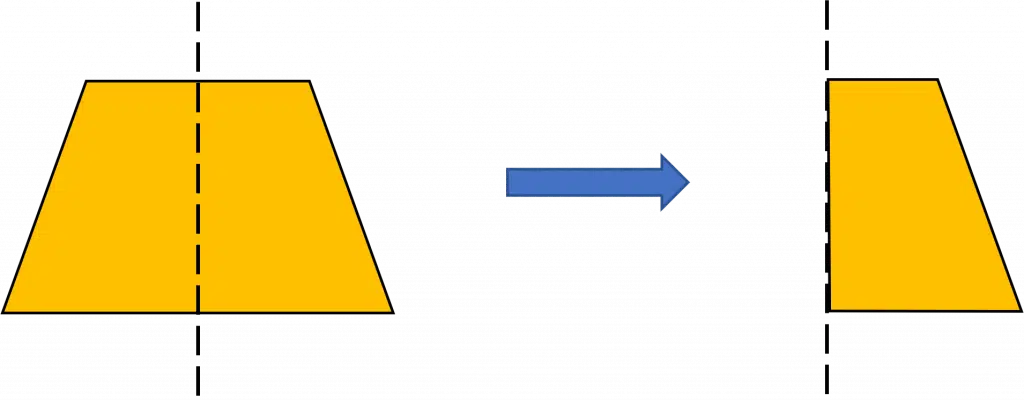

Look at the image on the right. The shape folds in half along the dotted line. The dotted line is the line of symmetry.



Some shapes have two or more lines of symmetry.

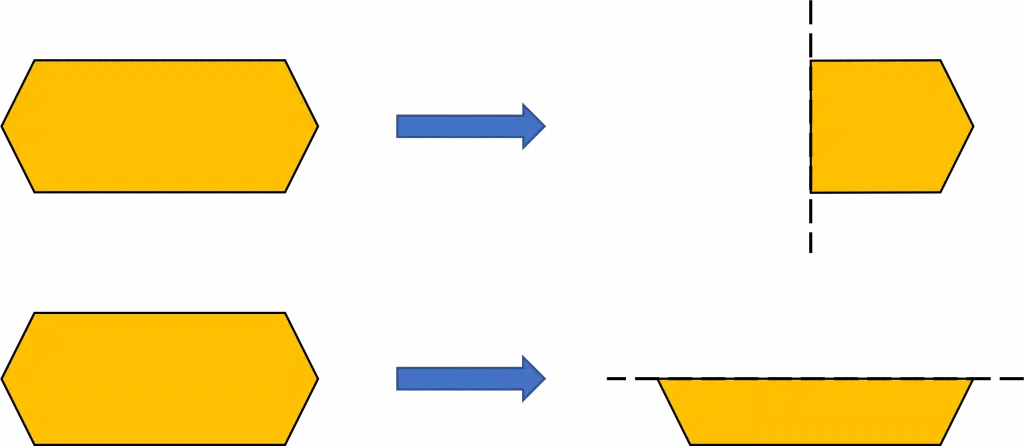

Take a look at the shape on the right.

It can be folded in half 2 ways, so it has 2 lines of symmetry.



Some shapes have no lines of symmetry.

Take a look at the shape on the right.

This shape cannot be folded in half in any direction, so it has no lines of symmetry.

Entry Level 3EdexcelCity & GuildsNCFEOpen Awards

Follow Our Socials

Social BG
Facebook

Follow our Facebook for community support

Social BG

Follow our Instagram & TikTok for revision help

Our Facebook page can put you in touch with other students of your course for revision and community support. Alternatively, you can find us on Instagram or TikTok where we're always sharing revision tips for all our courses.

Follow our socials for revision tips and community support

  • facebook
  • instagram
  • tiktok

2D Shapes

2D shapes are flat shapes. We have an infinite number of them, and have specific names assigned to each of them.

So, in order of number of sides:

  1. Circle
  2. Semicircle
  3. Triangle
  4. Quadrilateral (these can be squares or rectangles, or other shapes with 4 sides)

We do have more names beyond here, but we’ll rarely deal with these shapes.



Circles:

  • One curved side
  • No corners

Triangles:

  • Three straight sides
  • Sides can be different length
  • Three corners
  • Angles at corners can be different sizes

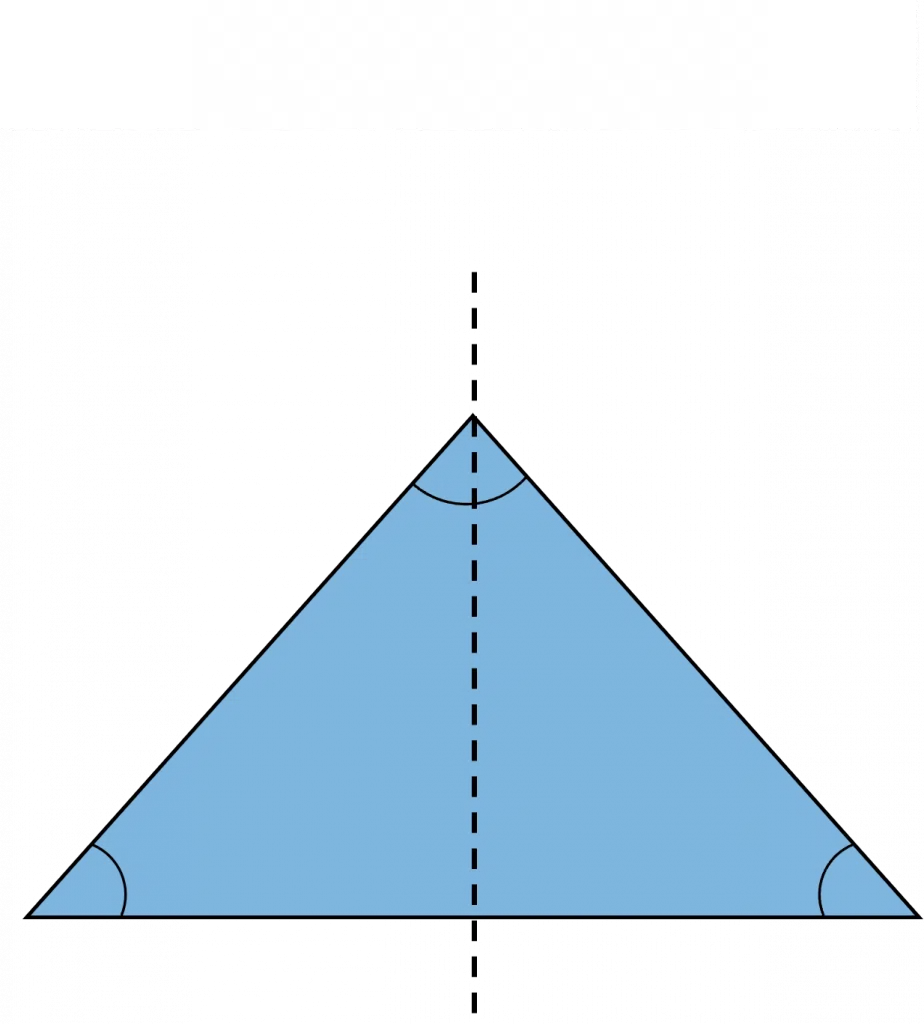

This triangle has:

  • 2 sides of the same length, and one of different length
  • 2 angles that are the same (the bottom ones)
  • 1 line of symmetry

Other triangles may have different properties.



Squares:

  • 4 straight sides
  • All sides are the same length
  • 4 corners
  • All angles at corners are right angles
  • 2 lines of symmetry

Rectangles:

  • 4 straight sides
  • Sides opposite to each other are the same length
  • 4 corners
  • All angles at corners are right angles
  • 2 lines of symmetry
Entry Level 3EdexcelCity & GuildsNCFEOpen Awards

Functional Skills: Symmetry and 2D Shapes Example Questions

Question 1: What are the names of these shapes?

a)



b)



c)

[3 marks]

Entry Level 3 EdexcelCity & GuildsNCFEOpen Awards

a) Square



b) Triangle



c) Circle

Question 2: Indicate the lines of symmetry on each shape, and write the number of lines of symmetry for each.



[4 marks]

Entry Level 3 EdexcelCity & GuildsNCFEOpen Awards

Question 3: Mark all lines of symmetry for the shape below. State the number of lines of symmetry.



[2 marks]

Entry Level 3 EdexcelCity & GuildsNCFEOpen Awards

There are 5 lines of symmetry.
